Lightweight, handheld thermal imaging monocular

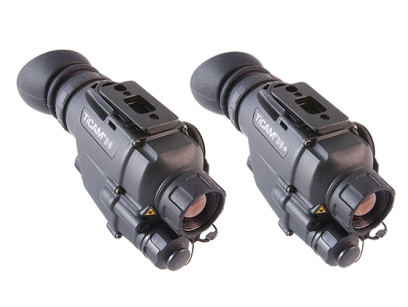

TiCAM 90 (25mm) is a small, lightweight, handheld thermal imaging monocular which delivers exceptional quality, uninterrupted imaging for situational awareness and threat detection in both urban and remote environments.

Available in two sensor resolutions TiCAM 90 (25mm), 384 x 288 or TiCAM 90+ 640 x 480, TiCAM 90 (25mm) incorporates Thermoteknix patented shutterless XTi technology for silent, uninterrupted imaging. Without any moving parts or interruption to imaging display, TiCAM 90 (25mm)’s ultra-low image latency ensures instant imaging without the lag.

TiCAM 90 (25mm) has direct menu feature selection, accessed via its unique multi-functional scroll wheel for ease of use, even when wearing gloves. Weighing just 225g and powered by one single AA battery for up to 4 hours of use, TiCAM 90 (25mm) minimises the carrying burden for every operation.

Providing man detection in excess of 900m, TiCAM 90 (25mm) is ideal for threat detection and man mobile surveillance usage.

TiCAM 90 (25mm) has optional visible or invisible (IR) laser pointer for identifying targets.

EXCEPTIONAL IMAGE QUALITY

Using a high performance LWIR detector, the TiCAM 90 (25mm) uses Thermoteknix patented shutterless XTi technology to provide best in class image quality performance.

WIDE RANGE OF FEATURES

Features include x1, x2 & x4 digital zoom, black hot/white thermal image, optional laser pointer (visible or IR) and external power input. Video output is available for integration into system transmission and recording devices.

WIDE RANGE OF APPLICATIONS

TiCAM 90 (25mm) is supplied for police and military applications including Infantry, Special Forces, Search & Rescue, SWAT, Border Security, Target Acquisition, Counter Terror Operations, VIP Protection and for general night-time situational awareness.

384x288-resolution-option

384 x 288 resolution option

640x480-resolution-option

640 x 480 resolution option

aa-battery-powered

AA Battery Powered

Full-40-field-of-view

Full 40 field of view

non-itar

Non-ITAR

XTi-Shutterless-Technology

XTi Shutterless Technology

Specification
Model TiCAM 90 (25mm) TiCAM 90+ (25mm)
Resolution 384 x 288 LWIR 640 x 480 LWIR
FOV 15° 24⁰
Target detection 980m 980m
Dimensions 112 x 50.5 x 60.5mm 112 x 50.5 x 60.5mm
Operating time 4 hours 3 hours
Weight 2225g 225g
Environmental MIL-STD-810G MIL-STD-810G
