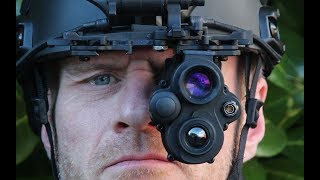

Helmet mounted fused thermal & night vision monocular

A lightweight, integral helmet mounted fused thermal and night vision monocular goggle featuring 16mm intensifier tube technology combined with Thermoteknix’s silent, shutterless thermal imaging camera.

FuseIR can be operated in intensified mode with extended battery life or in full thermal and intensified fused modes.

Modern night time combat requires full operational effectiveness in varying conditions and terrains, from inner city to dense jungle. Image Intensifiers (I²) require some ambient illumination to operate effectively but they are defeated by excess light such as from street lighting or headlamps, camouflage, vegetation and from insufficient light on cloudy moonless nights, fog/smoke or complete darkness inside buildings.

Thermal imaging is independent of light and operates in any level of darkness, fog and smoke but does not identify the features and textures shown by I².

To deliver maximum situational awareness in all light conditions, FuseIR combines an image intensifier and a thermal imager giving fused night vision.

FuseIR is not for sale or use in USA.

Mission Ready Technology

FuseIR is a mission-ready device with universal fast helmet mount attachment and quick release mechanism. All functions are quickly and simply accessed via a single control wheel specifically designed for left and right handed users even when wearing gloves.

Thermoteknix Shutterless XTI Technology

FuseIR is the only fused night vision device with Thermoteknix patented Shutterless XTI Technology, so has no moving parts, is completely silent in operation and is ‘never blind’.

Modes

Supporting I² only, Thermal only & fused night vision modes along with thermal edge enhancement and full thermal overlay. FuseIR weighs just 400g and maximises detection and identification in a compact handheld/helmet mounted device.

384x288-resolution-option

384 x 288 resolution option

aa-battery-powered

AA Battery Powered

Full-40-field-of-view

Full 40 field of view

image-fusion

Image Fusion

non-itar

Non-ITAR

XTi-Shutterless-Technology

XTi Shutterless Technology

Specification
Detector 384 x 288 LWIR
Dimensions (excluding eyecup and lens cap) 63.5 x 107 x 80mm (W x L x H)
Dimensions (including eyecup and lens cap) 63.5 x 145 x 80mm (W x L x H)
Weight 400g ± 2g (excluding batteries, eyecup and lens cap)
Operating time 8 hours
Thermal field of view (FOV) 31°
Intensified field of view (FOV) 40°
Detection (thermal) 340m
Battery 2 x AA
